Backups, health & integrity check
Three admin-only pages that answer "is this installation in good shape": Backups, Status and Integrity check.
Backup Manager
In the sidebar, go to System > Backups. Database backups are created automatically, on a schedule — this page is an overview, not a trigger.
Backups are created hourly by the cron daemon via pg_dump, following the schedule and rotation set in the backup conflines, into a backup folder on the server. Restoring and downloading a backup through this page are not available yet — a restore is a manual pg_restore on the server.

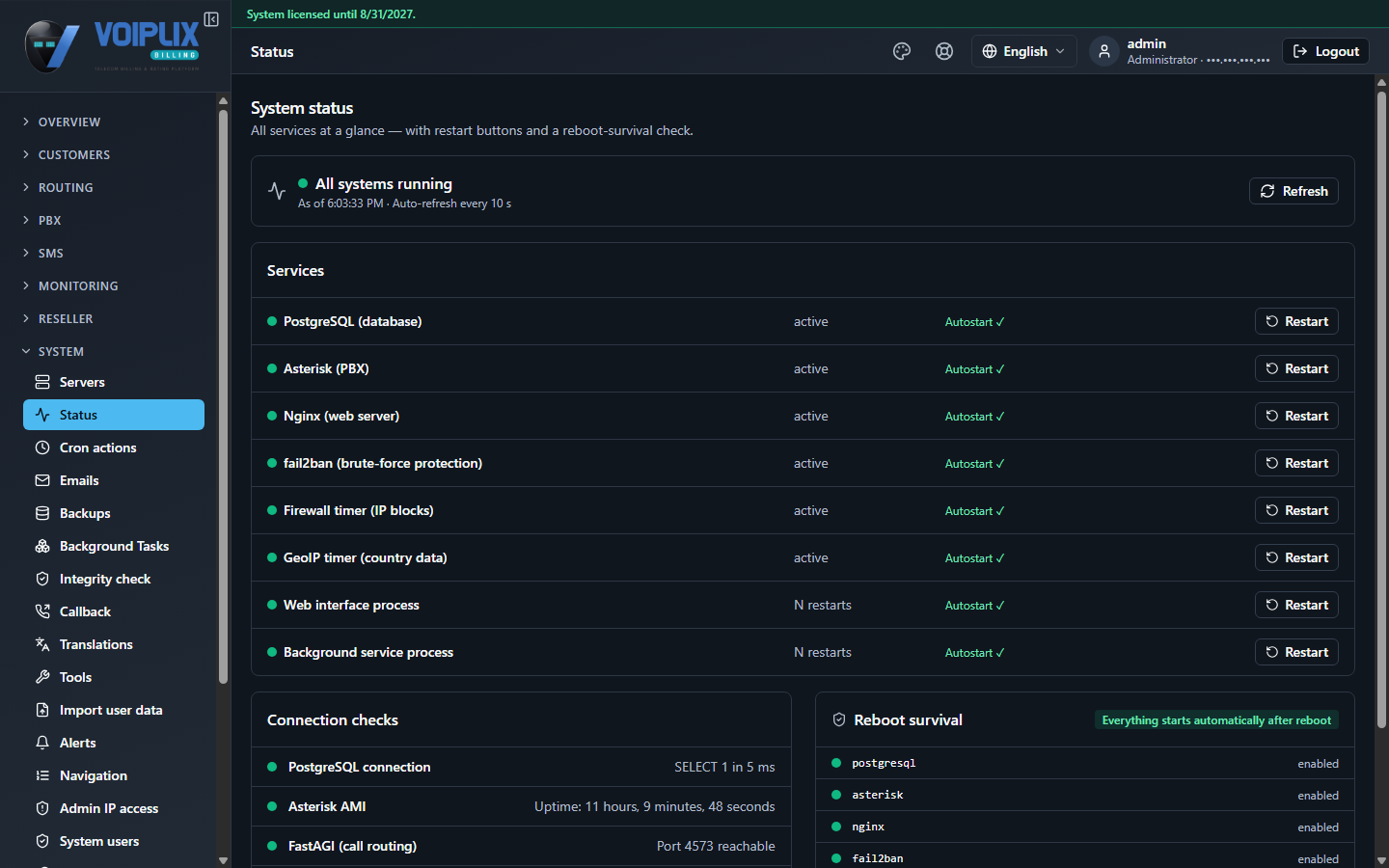

System status ("doctor")
In the sidebar, go to System > Status. This is the closest thing to a health check / doctor page: every core service at a glance, with restart buttons and a reboot-survival check, refreshing automatically every 10 seconds.
| Section | Shows |
|---|---|
Services | PostgreSQL, Asterisk (PBX), Nginx, fail2ban (brute-force protection), the firewall and GeoIP timers, and the web/background processes — each with a status dot, restart count and its own Restart button. |
Connection checks | Live checks such as the PostgreSQL connection latency, Asterisk AMI uptime, and whether FastAGI (call routing) is reachable. |
Reboot survival | Whether each service is set to start automatically after a server reboot. |
The Restart buttons are real: each one restarts a live service on this server. This wiki only looks at the page — it does not press any of them.

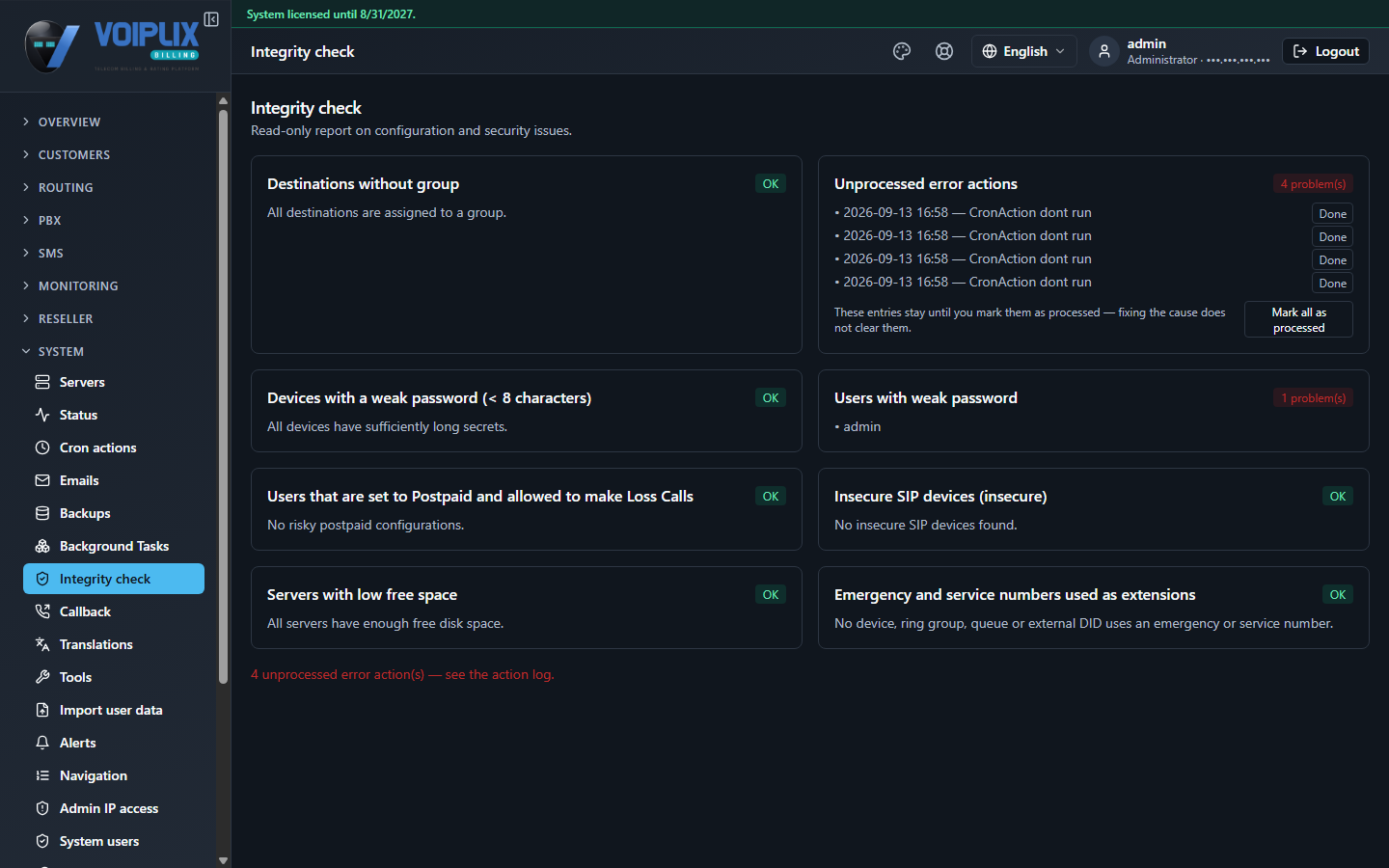

Integrity check
In the sidebar, go to System > Integrity check. A read-only report on configuration and security issues, checked live each time you open the page — nothing here is fixed automatically.
| Check | Flags |
|---|---|
| Destinations without group | Destinations not assigned to any destination group. |
| Unprocessed error actions | Failed background actions not yet marked as reviewed — these stay listed until marked "Done", even after the underlying cause is fixed. |
| Devices with a weak password | Device (SIP) secrets shorter than 8 characters. |
| Users with weak password | Customer accounts with an empty or trivial password. |
| Postpaid + allowed loss calls | Users set to postpaid and allowed to make calls the system cannot bill — a risky combination. |
| Insecure SIP devices | Devices without transport encryption. |
| Servers with low free space | Any server approaching its disk space limit. |
| Emergency numbers as extension | An emergency or service number reused as a device, ring group, queue or DID extension. |
Check
Open Status and confirm every service shows a green dot; open Integrity check and confirm nothing new appears that was not there the last time you looked.
