Statistics: profit, hangup causes & loss‑making calls

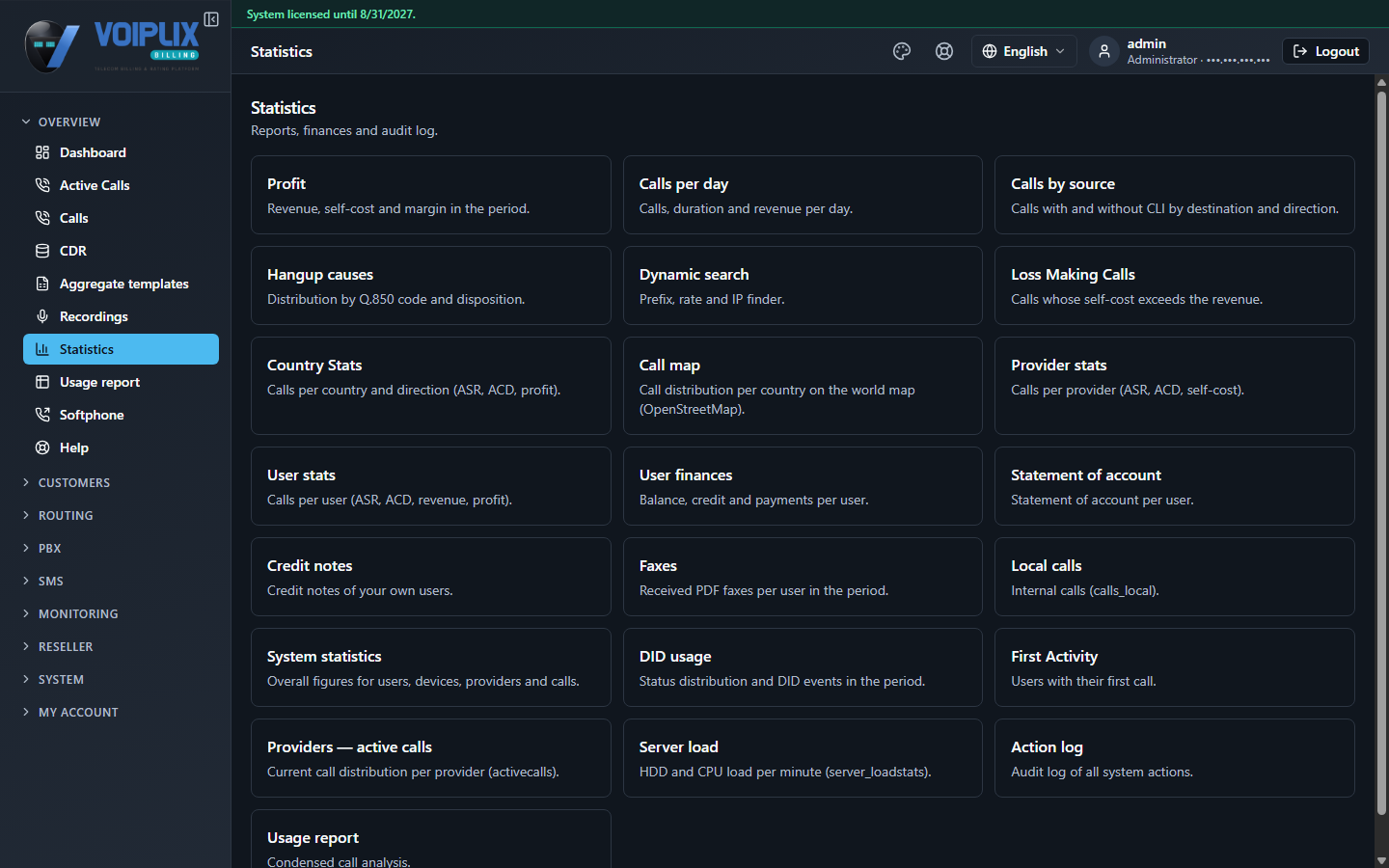

Statistics in the sidebar is a hub of reports, like CDR management. This page covers three of them: the period Profit summary, Hangup causes (with a table of what the common codes mean), and Loss Making Calls. The grouped/aggregate report lives on its own page: Usage report & aggregate templates.
Which tiles appear depends on the logged‑in role: reports that show money (self‑cost, profit) need permission to see finances; two system‑wide tiles (System statistics, Server load) are admin/accountant only.

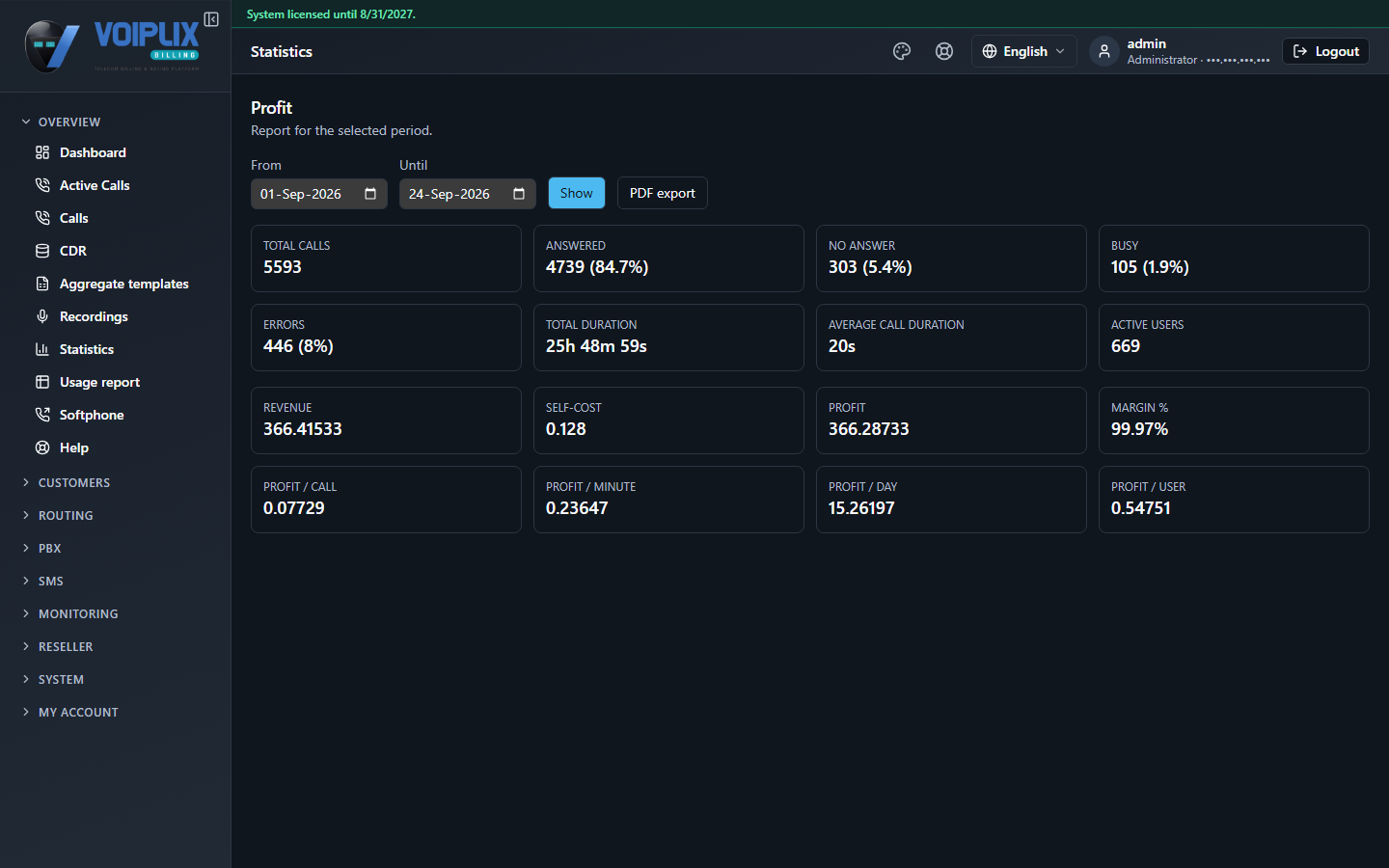

Profit
A period summary: pick a date range and press Show. The top row of tiles is available to everyone — total/answered/no‑answer/busy/error call counts and their percentages, total and average duration, active users. A second row, visible to admin, accountant and reseller (not partner), adds Revenue, Self‑cost, Profit, Margin, and profit per call / per minute / per day / per user.
A PDF export link next to the date form produces the same report as a downloadable PDF for the chosen range.

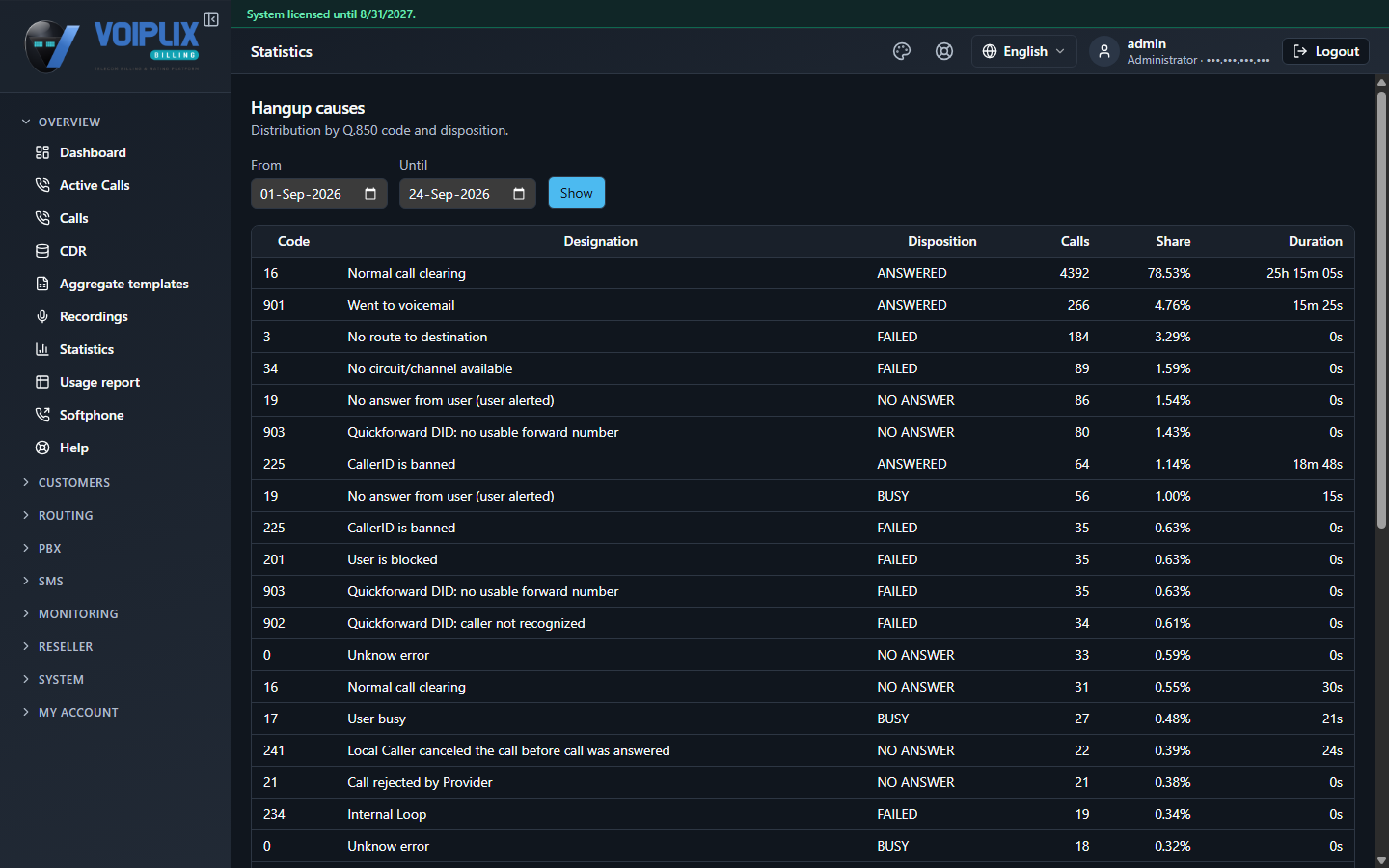

Hangup causes explained
The Hangup causes report groups every call in a date range by its cause code, with the count, share of total, and total duration for each. Voiplix records standard telecom Q.850 codes (0–127) plus a set of its own codes (200 and up) for reasons that are specific to this billing/routing system rather than to the phone network — a low balance or a blocked account, for instance.
This same code appears as Hangup Cause on the Calls list, as Hangupcause on a call's detail page, and as Q.850 on each row of a call's dial‑attempt trace.
The most common codes
| Code | Name | What it usually means |
|---|---|---|
16 | Normal call clearing | Either side hung up normally after the call — the expected code for a completed, answered call. |
17 | User busy | The called party was on another call. |
18 | No user responding | The far end never answered the signalling at all — often a misconfigured or offline device. |
19 | No answer from user (user alerted) | It rang, but nobody picked up in time. |
21 | Call rejected by Provider | The provider actively refused the call — worth checking with the carrier. |
34 | No circuit/channel available | No free path to the destination at that moment — usually temporary. |
38 | Network out of order | The network is down or badly degraded, likely for a while. |
1 | Unallocated (unassigned) number | The number itself isn't valid or in service. |
201 | User is blocked | Voiplix‑specific: the calling user's account is blocked. |
204 | No suitable providers found | Voiplix‑specific: nothing in the routing (LCR) could carry this call — an empty or misconfigured route. |
211 | Low balance for user | Voiplix‑specific: a prepaid user doesn't have enough balance to place the call. |
225 | CallerID is banned | Voiplix‑specific: the caller ID used is on a blacklist. |
231 | Provider unreachable | Voiplix‑specific: the carrier could not be reached — check its IP/port settings. |
Codes at 200 and above are never a phone‑network problem — they always mean something inside this system's own configuration (balance, blocking, routing, rates) stopped the call before it ever reached a carrier.

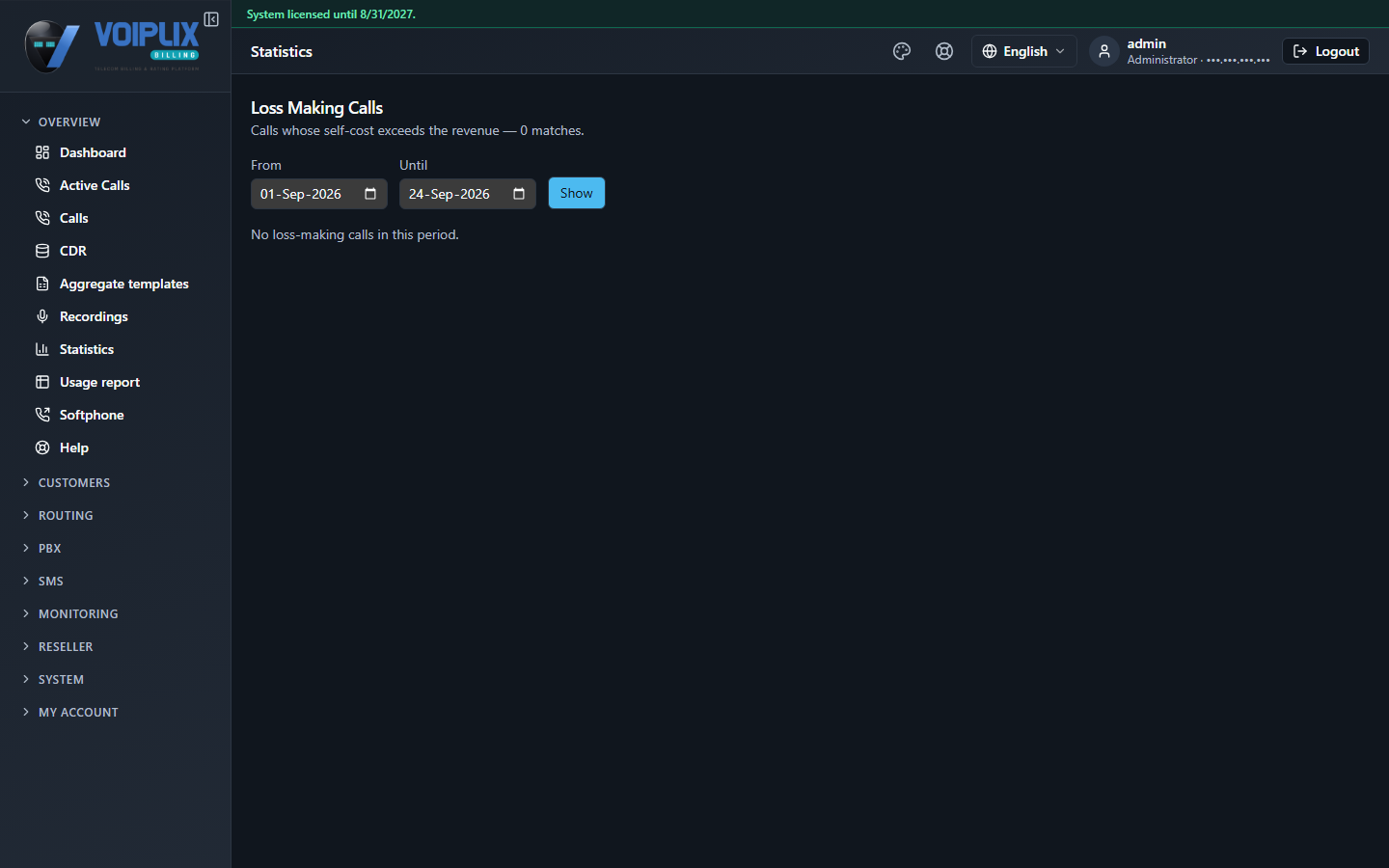

Loss Making Calls
Lists individual calls where the self‑cost (what the provider charged) was higher than the revenue (what the customer was charged) — in other words, calls that lost money. Same date‑range form as Profit; needs finance access to open at all.
Only the newest 10,000 matching calls are listed if a period has more than that — the report says so and the totals still cover everything, not just the shown rows.
Check
A spike in one hangup‑cause code across many calls at once is the fastest way to spot a systemic problem (a provider outage shows up as a jump in 38 or 231; a routing mistake as a jump in 204) — much faster than reading the Calls list row by row.
